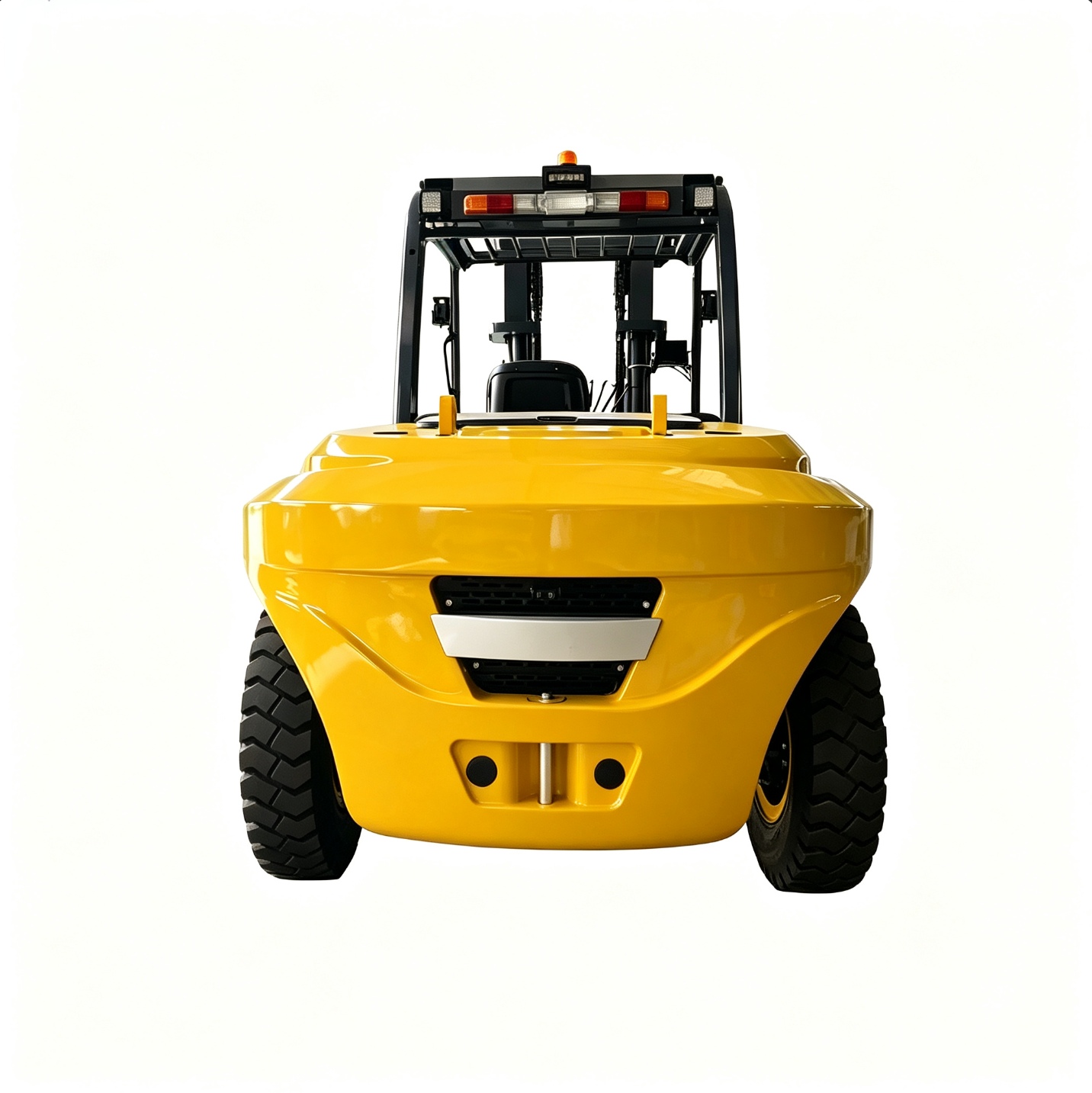

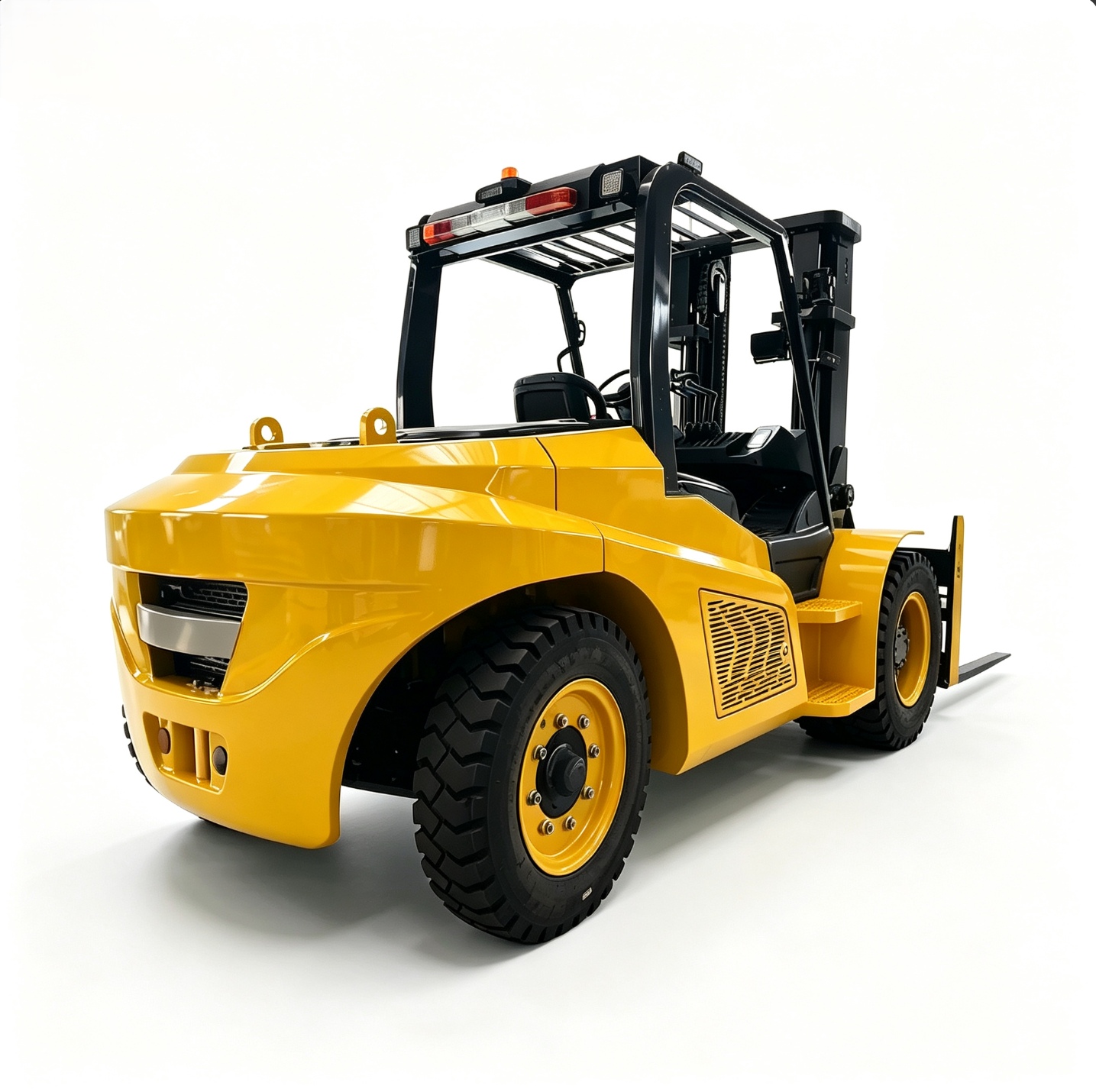

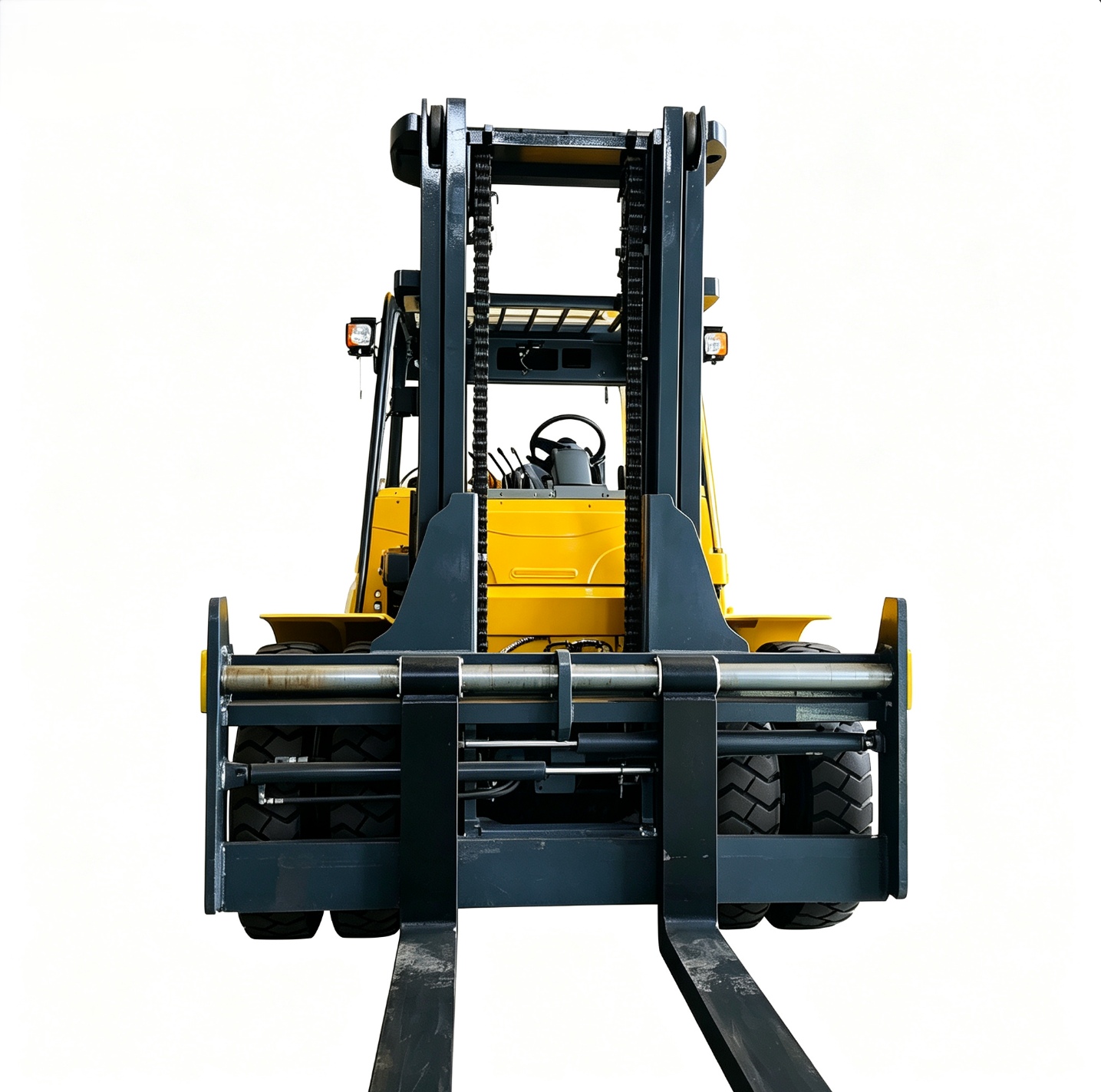

RKF60 High Voltage Lithium Battery Forklift
The RKF60 is engineered for easy, operator-friendly handling, high operating efficiency, and a robust, reliable structure. It performs confidently across complex operating conditions, enabling efficient and stable operation.
Description
Tags
Product Specifications
| Section | No. | Parameter | Symbol | Unit | Value |
| Identification | 1.1 | Manufacturer | — | — | ZNRK |
| 1.2 | Model designation | — | — | RKF60 | |
| 1.3 | Drive type | — | — | Electric | |
| 1.4 | Operator position | — | — | Seated | |
| 1.5 | Rated capacity | Q | kg | 6000 | |
| 1.6 | Load centre distance | c | mm | 600 | |
| 1.7 | Load distance (drive axle centre to fork face) | x | mm | 580 | |
| 1.8 | Wheelbase | y | mm | 2300 | |
| Weight | 2.1 | Service weight | — | kg | 8965 |
| 2.2 | Axle load, laden (front/rear) | — | kg | 13390/1575 | |
| 2.3 | Axle load, unladen (front/rear) | — | kg | 4310/4655 | |
| Tyres | 3.1 | Tyre type | — | — | Pneumatic |
| 3.2 | Front tyre size | — | — | 8.25-15-14PR | |
| 3.3 | Rear tyre size | — | — | 8.25-15-14PR | |
| 3.4 | Number of wheels, front/rear (x = driven wheels) | — | — | 4×/2 | |
| 3.5 | Front tread | b10 | mm | 1520 | |
| 3.6 | Rear tread | b11 | mm | 1700 | |
| Dimensions | 4.1 | Mast tilt angle, forward/backward | α/β | ° | 6/12 |
| 4.2 | Mast height, lowered | h1 | mm | 2480 | |
| 4.3 | Free lift | h2 | mm | 160 | |
| 4.4 | Lift height (standard) | h3 | mm | 3000 | |
| 4.5 | Max. lift height (with load backrest) | h4 | mm | 4400 | |
| 4.6 | Overhead guard height | h6 | mm | 2450 | |
| 4.7 | Seat reference point (SIP) height | h7 | mm | 1435 | |
| 4.8 | Traction pin height | h10 | mm | 535 | |
| 4.9 | Overall length, incl. forks | l1 | mm | 4795 | |
| 4.10 | Length to fork face | l2 | mm | 3575 | |
| 4.11 | Overall width | b1 | mm | 2045 | |
| 4.12 | Fork dimensions (thickness × width × length) | s/e/l | mm | 60×150×1220 | |
| 4.13 | Fork carriage class (ISO 2330) | — | — | 4A | |
| 4.14 | Fork spread, outside (max./min.) | b5 | mm | 1845/300 | |
| 4.15 | Ground clearance, laden (below mast) | m1 | mm | 180 | |
| 4.16 | Ground clearance, laden (centre of wheelbase) | m2 | mm | 230 | |
| 4.17 | Aisle width, pallets 1000×1200 crossways | Ast | mm | 5060 | |
| 4.18 | Aisle width, pallets 800×1200 lengthways | Ast | mm | 5260 | |
| 4.19 | Turning radius (outside) | Wa | mm | 3280 | |
| Performance | 5.1 | Travel speed, laden/unladen | — | km/h | 27/27 |
| 5.2 | Lift speed, laden/unladen | — | mm/s | 425/460 | |
| 5.3 | Lowering speed, laden/unladen | — | mm/s | 480/420 | |
| 5.4 | Max. drawbar pull (laden) | — | N | 47000 | |
| 5.5 | Max. gradeability, laden/unladen | — | % | 25/25 | |
| 5.6 | Acceleration time (0–10 m), laden/unladen | — | s | 5.2/4.9 | |
| Battery | 6.1 | Battery voltage/capacity | — | V/Ah | 326.4/150 |
| 6.2 | Battery weight | — | kg | 620 | |
| Motor & Controller | 7.1 | Drive motor power rating (S2 60 min) | — | kW | 60 |
| 7.2 | Lift motor power rating (S3 15%) | — | kW | 27.8×2 | |
| 7.3 | Drive motor control | — | — | IGBT / AC | |
| 7.4 | Lift motor control | — | — | IGBT / AC | |
| Others | 8.1 | Service brake / Parking brake | — | — | Hydraulic / Mechanical |
| 8.2 | Attachment operating pressure | — | MPa | 14 |
Customizable Configuration Options
| Category | Item | Status |
| Security | Turn speed limiter | S |
| Reverse handrail horn switch | S | |
| Overspeed alarm (+5 km/h) | O | |
| Overspeed alarm (+8 km/h) | O | |
| Overspeed alarm (+10 km/h) | O | |
| Vehicle speed limiting (stepless type) | O | |
| OPS seat with seat-belt interlock switch | O | |
| Multi-way valve overload protection | S | |
| Dry powder fire extinguisher (0.5 kg) | O | |
| Dry powder fire extinguisher (2 kg) | O | |
| Reverse buzzer | S | |
| Reverse voice alarm (Chinese) | O | |
| Lift electronic cushioning (upper buffer) | S | |
| Central wide-angle rearview mirror | S | |
| Dual side mirrors + central wide-angle rearview mirror | O | |
| Comfort | Semi-enclosed seat | S |
| Full suspension seat | O | |
| USB port (5V/1A) | S | |
| Steering wheel–activated steering (enable/activation) | S | |
| Mechanical control valve | S | |
| Electric fan | O | |
| Cab/Windshield | Integrated cab | O |
| Heating & air-conditioning system | O | |
| Front windshield | O | |
| Rear windshield | O | |
| Roof rain shield (top canopy rain guard glass) | O | |
| Lighting | Rear LED work light | O |
| Front red/blue LED spotlight | O | |
| Rear red/blue LED spotlight | O | |
| Red/blue LED light bars (left/right/rear) | O | |
| Fixed LED flashing warning light | S | |
| Fixed LED rotating beacon | O | |
| Fixed LED rotating beacon with buzzer | O | |
| Other | Steering cylinder protective sleeve (bushing) | S |
| Tilt cylinder protective sleeve (bushing) | O | |
| Fork carriage (fork frame) | S | |
| Load backrest (load guard) | S | |
| Hydraulic fork positioner | S |
Note: O=Optional；S=Standard
Application
Manufacturing
The K1 Series High Voltage Lithium Battery Forklift is designed for manufacturing environments with tight takt times and frequent material moves, delivering stable performance under heavy-duty and continuous operating cycles. With efficient lifting and loading/unloading, it shortens cycle time and supports high-intensity material flow across workshops and plant yards.
Warehousing & Logistics
The K1 Series High Voltage Lithium Battery Forklift fits warehousing and logistics scenarios such as inbound/outbound handling, internal transfers, and high-frequency loading. Its high working efficiency and operator-friendly control help reduce waiting and idle time, increase per-shift throughput, and meet peak-hour intensive handling demands.
