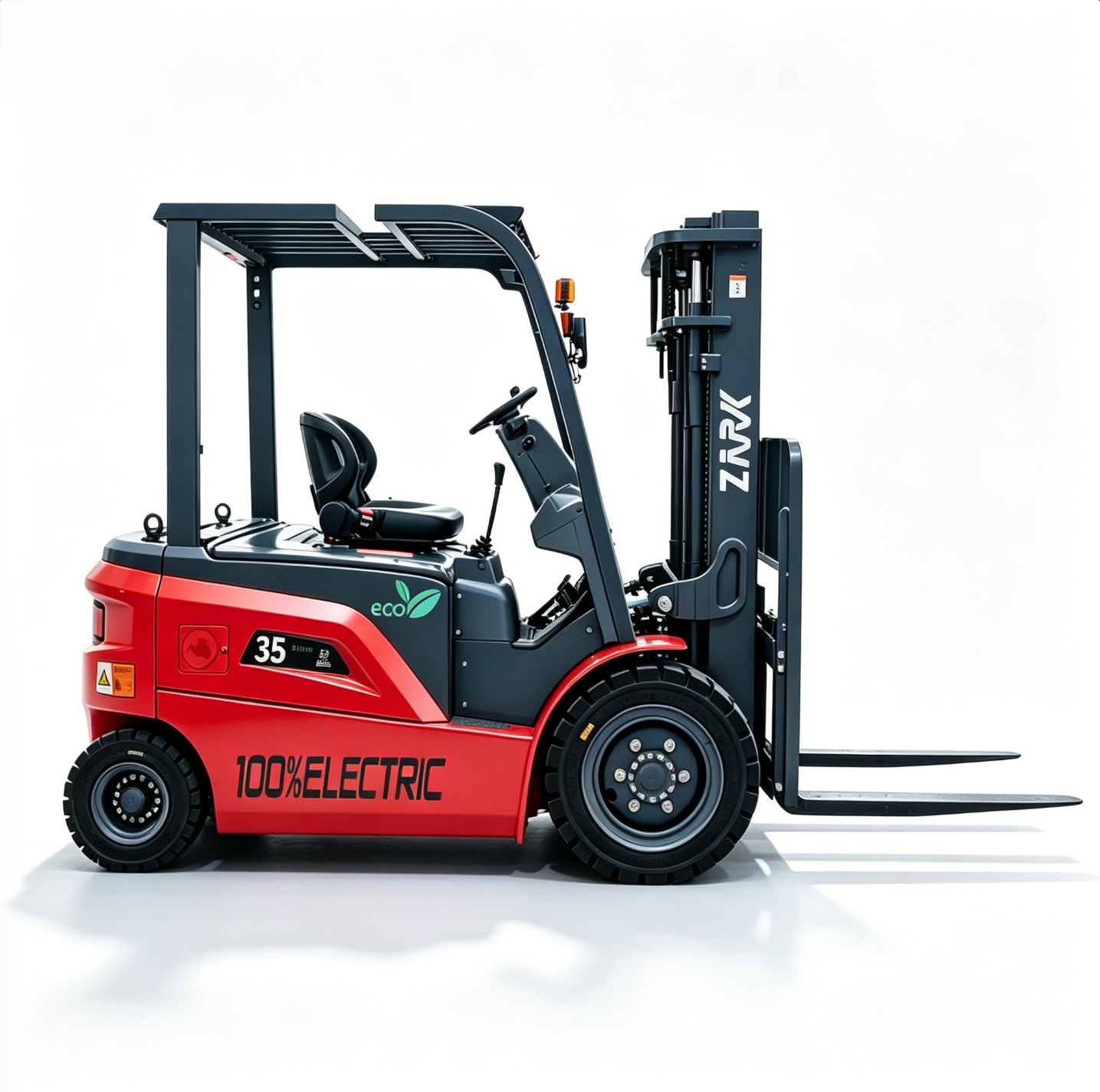

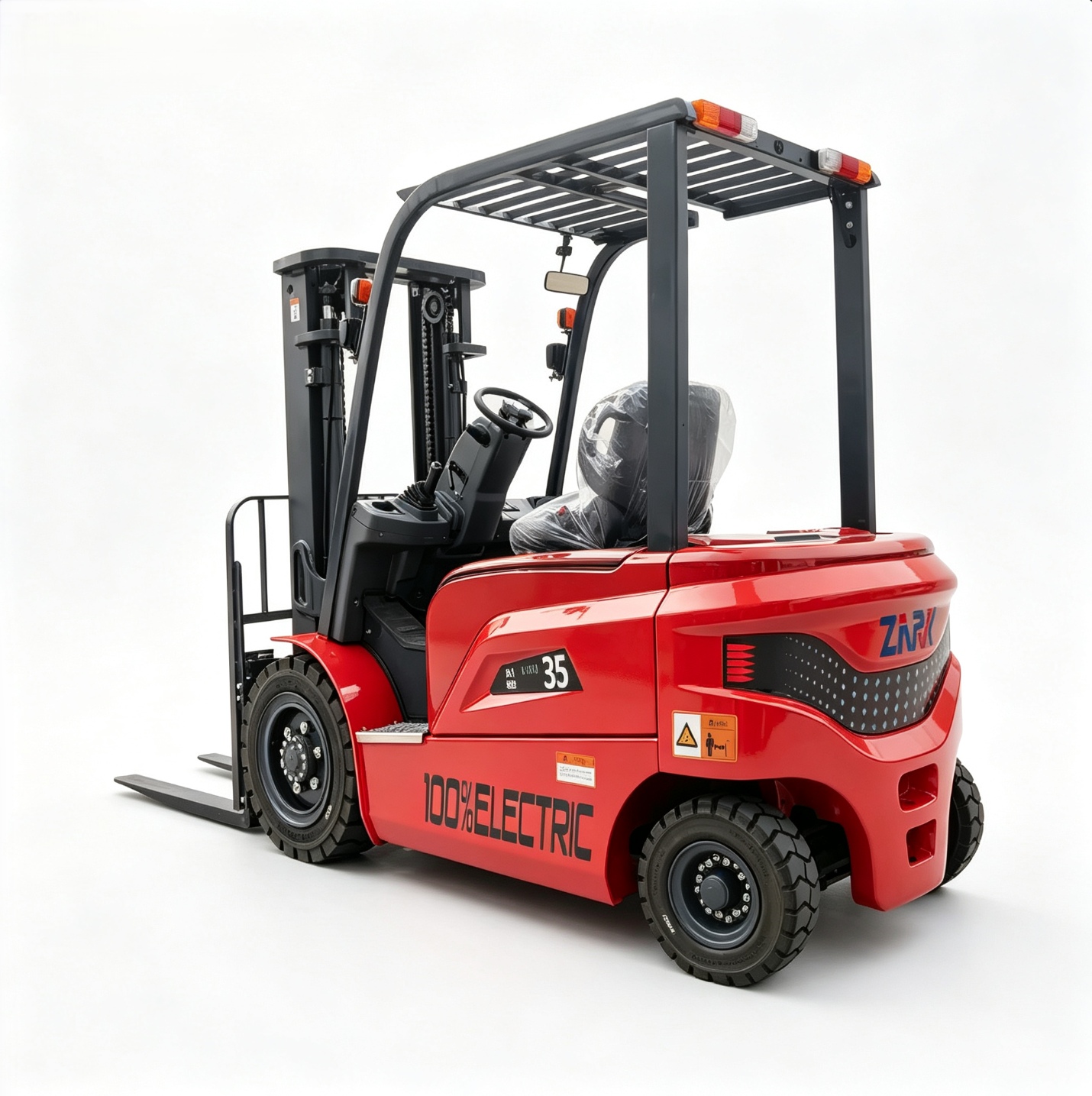

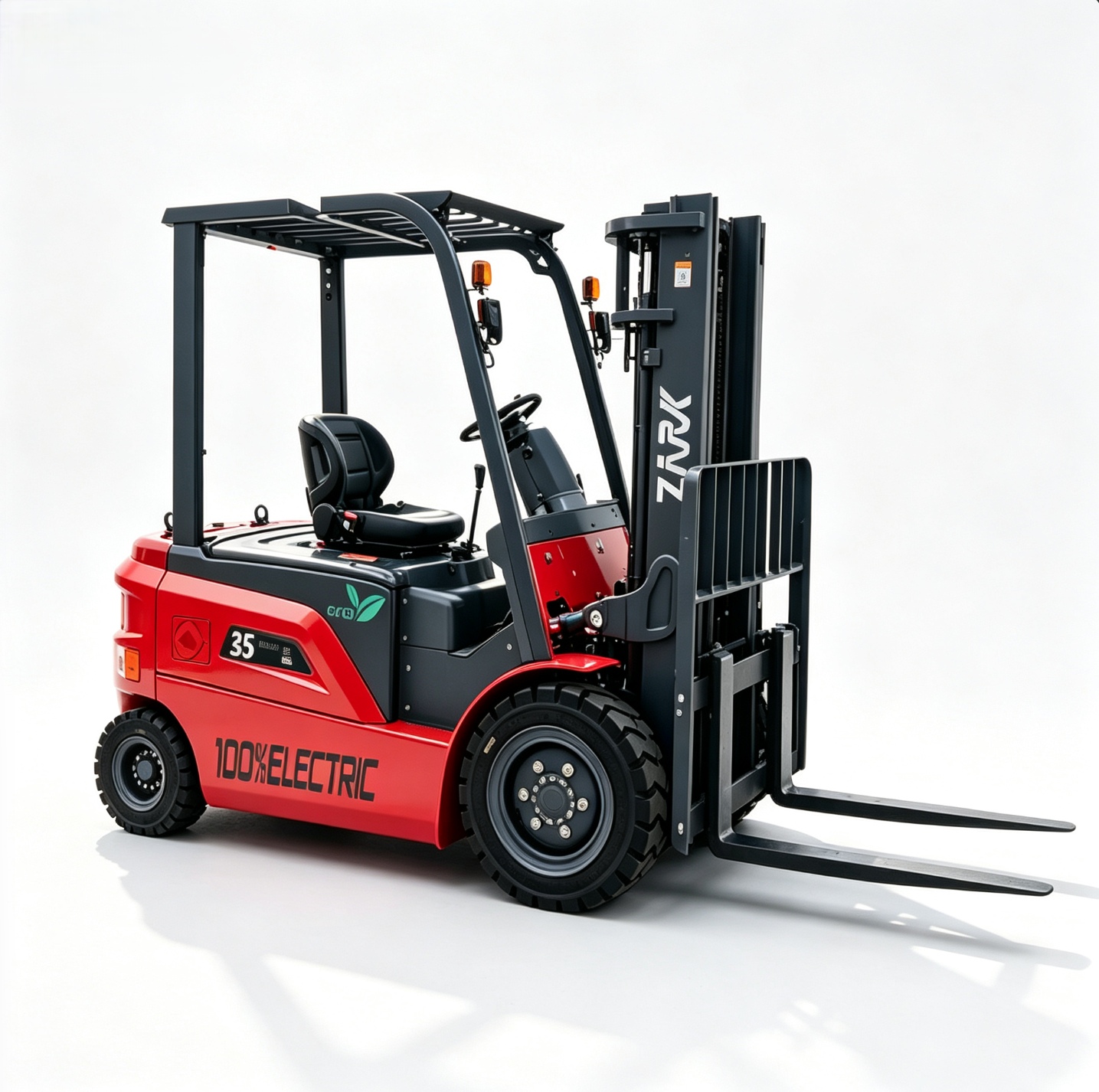

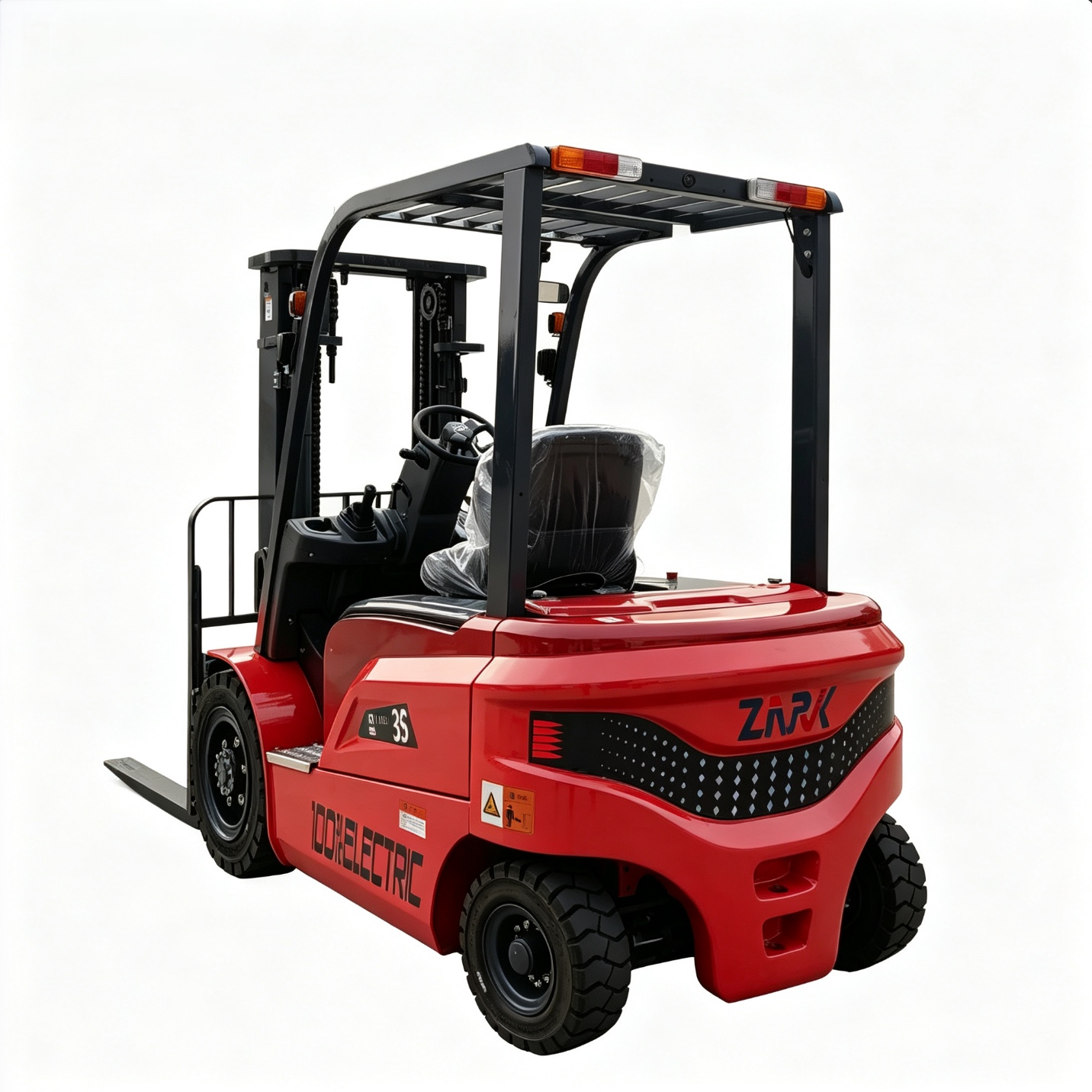

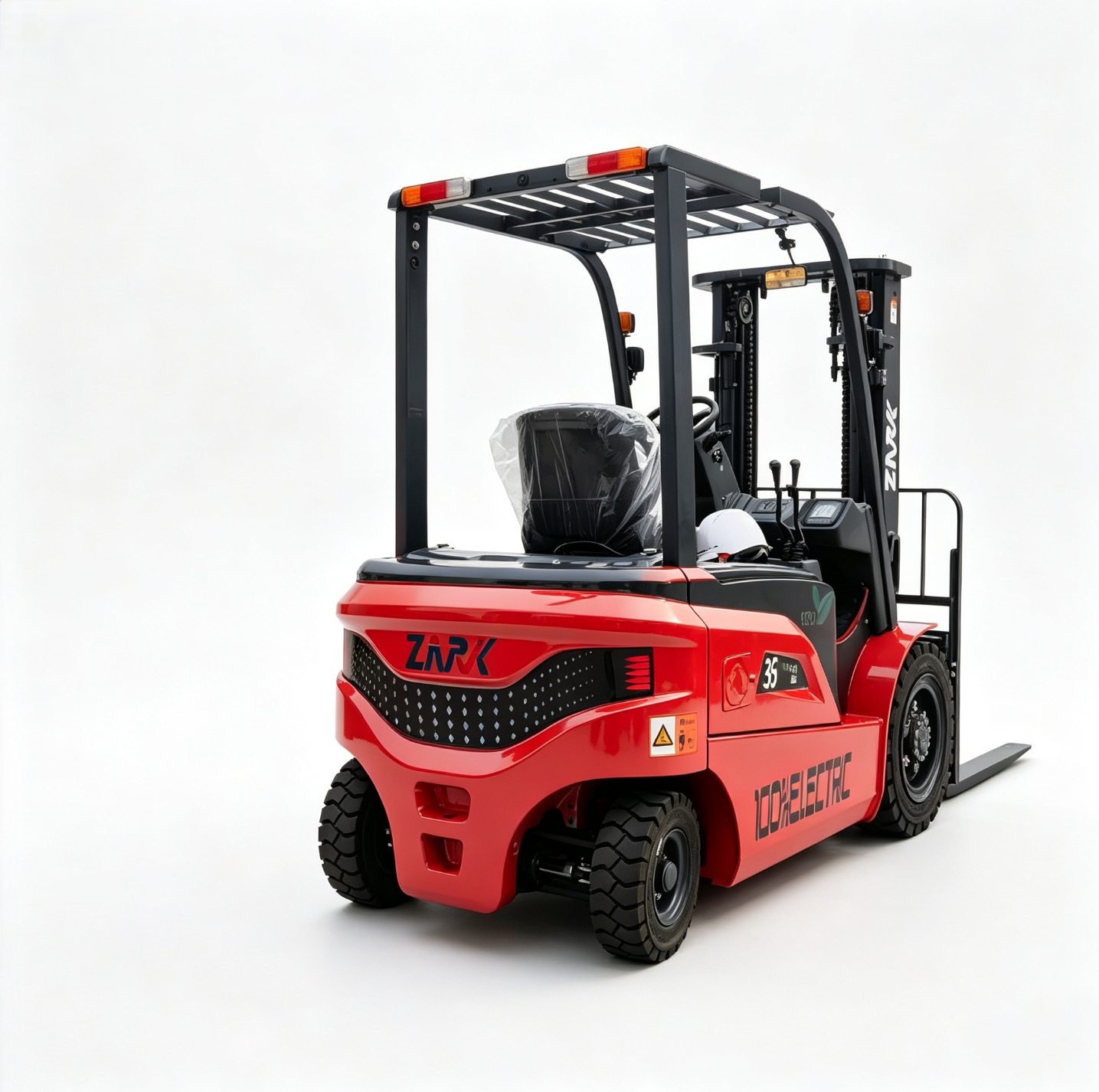

R1系列3.5t低压锂电叉车参数
R1 Series 3.5t Low Voltage Lithium Battery Forklift Parameters
| 规格区分
Distinguishing mark |
1.1 | 制造商
Manufacturer |
|||
| 1.2 | 制造商型号
Manufacturer’s type designation |
RKF35 | |||
| 1.3 | 驱动方式
Drive type |
电动
Electric |
|||
| 1.4 | 操作方式
Operator type |
座驾式
Seated |
|||
| 1.5 | 额定载荷
Rated capacity/rated load |
Q | kg | 3500 | |
| 1.6 | 载荷中心距
Load centre distance |
c | mm | 500 | |
| 1.7 | 前悬距
Load distance, centre of drive axle to fork |
x | mm | 475 | |
| 1.8 | 轴距
Wheelbase |
y | mm | 1750 | |
| 重量
Weight |
2.1 | 总重
Service Weight |
kg | 4840/4510 | |
| 2.2 | 桥负载，满载前/后
Axle loading, laden front/rear |
kg | 7550/800 | ||
| 2.3 | 桥负载，空载前/后
Axle loading, unladen front/rear |
kg | 2000/2770 | ||
| 轮胎
Tyres |
3.1 | 轮胎
Tyres |
前轮充气轮/后轮实心胎 | ||
| 3.2 | 轮胎尺寸，前
Tyre size, front |
28X9-15-14PR | |||
| 3.3 | 轮胎尺寸，后
Tyre size, rear |
18×7-8 | |||
| 3.4 | 车轮数量，前/后（x=驱动轮）
Wheels, number front / rear (x = driven wheels) |
2x/2 | |||
| 3.5 | 前轮距
Tread, front |
b10 | mm | 1000 | |
| 3.6 | 后轮距
Tread, rear |
b11 | mm | 975 | |
| 尺寸
Dimensions |
4.1 | 门架倾角（前/后）
Tilt of mast/fork carriage forward/backward |
α/β | ° | 6/10 |
| 4.2 | 门架全高
Height, mast lowered |
h1 | mm | 2120 | |
| 4.3 | 自由起升高度
Free lift |
h2 | mm | 155 | |
| 4.4 | 起升高度(标准)
Lift |
h3 | mm | 3000 | |
| 4.5 | 作业时最大高度（带挡货架）
Height, mast extended |
h4 | mm | 4220 | |
| 4.6 | 护顶架高度
Height of overhead guard |
h6 | mm | 2170 | |
| 4.7 | 座椅SIP点高度
Seat height/stand height |
h7 | mm | 1160 | |
| 4.8 | 牵引销位置高度
Position height of traction pin |
h10 | mm | 315 | |
| 4.9 | 全长（带货叉）
Overall length |
l1 | mm | 3602 | |
| 尺寸
Dimensions |
4.10 | 全长（不带货叉）
Length to face of forks |
l2 | mm | 2532 |
| 4.11 | 全宽
Overall width |
b1 | mm | 1260 | |
| 4.12 | 货叉尺寸：厚x宽x长
Fork dimensions:thick*wide*length |
s/e/l | mm | 50*125*1070 | |
| 4.13 | 货叉架，ISO2330标准
Freight fork,ISO 2330 standard |
3A | |||
| 4.14 | 货叉外侧间距，最大/最小
Outside spacing of fork,max/min |
b5 | mm | 1060/250 | |
| 4.15 | 离地间隙（满载/门架处）
Ground clearance, laden, below mast |
m1 | mm | 110 | |
| 4.16 | 离地间隙（满载/轴距中心处）
Ground clearance, centre of wheelbase |
m2 | mm | 140 | |
| 4.17 | 直角堆垛通道宽度，1000×1200横置托盘
Aisle width for pallets 1000 x 1200 crossways |
Ast | mm | 3917 | |
| 4.18 | 直角堆垛通道宽度，800×1200纵置托盘
Aisle width for pallets 800 x 1200 lengthways |
Ast | mm | 4117 | |
| 4.19 | 外侧转弯半径
Turning radius |
Wa | mm | 2255 | |
| 性能
Performance |
5.1 | 行驶速度（满载/空载）
Travel speed, laden/unladen |
km/h | 16.5/18 | |
| 5.2 | 起升速度（满载/无载）
Lift speed, laden/unladen |
mm/s | 270/400 | ||
| 5.3 | 下降速度（满载/无载）
Lowering speed, laden/unladen |
mm/s | 450/385 | ||
| 5.4 | 最大牵引力（满载/空载）
Maximum traction laden/unladen) |
N | 16900/15900 | ||
| 5.5 | 最大爬坡能力（满载/无载）
Max gradeability, laden/unladen |
% | 15/22 | ||
| 5.6 | 加速时间（10米）（满载/空载）
Acceleration time, laden/unladen (0-10m) |
s | 5.7/4.7 | ||
| 电池
Battery |
6.1 | 蓄电池电压/容量
Battery voltage/capacity |
V/Ah | 80/404 | |
| 6.2 | 蓄电池重量
Battery weight |
kg | 330 | ||
| 电机和控制器
Motor and controller |
7.1 | 驱动电机功率S2 60 min
Drive motor rating S2 60 min |
kw | 18 | |
| 7.2 | 起升电机功率S3 15%
Lift motor rating at S3 15% |
kw | 22.6 | ||
| 7.3 | 驱动电机控制方式
Control mode of driving motor |
IGBT/交流 | |||
| 7.4 | 起升电机控制方式
Control mode of hoisting motor |
IGBT/交流 | |||
| 其他
Others |
8.1 | 行车制动/停车制动
Service brake/Parking brake |
液力/机械 | ||
| 8.2 | 属具工作压力
Working pressure of tools |
Mpa | 16 |
注：由于技术改进，该数据可能与产品不符，如有差异请以产品为准
Note: Due to technical improvements, this data may differ from the product. Please refer to the product for accuracy.

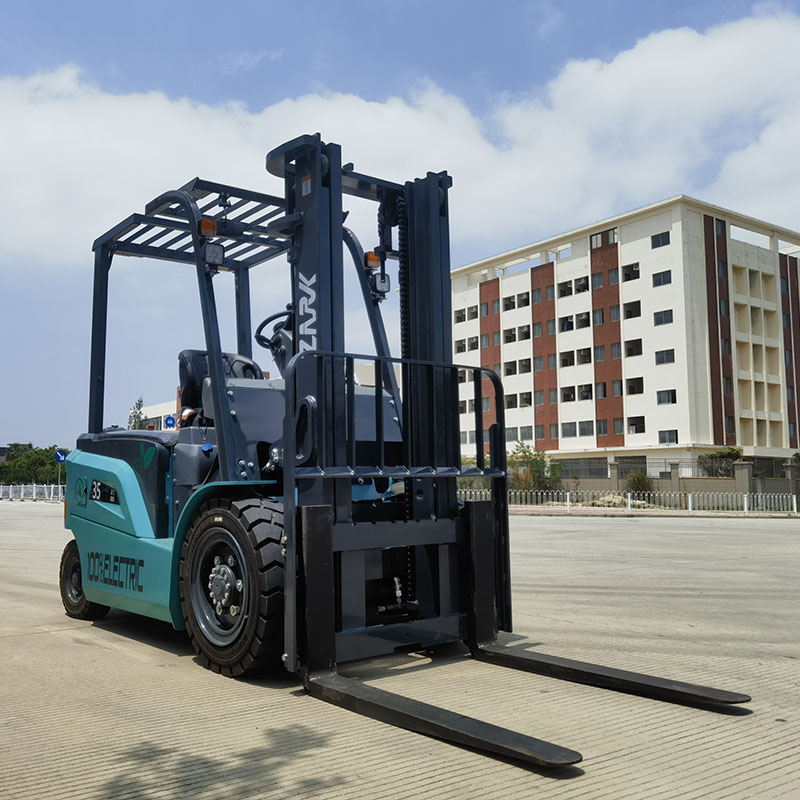

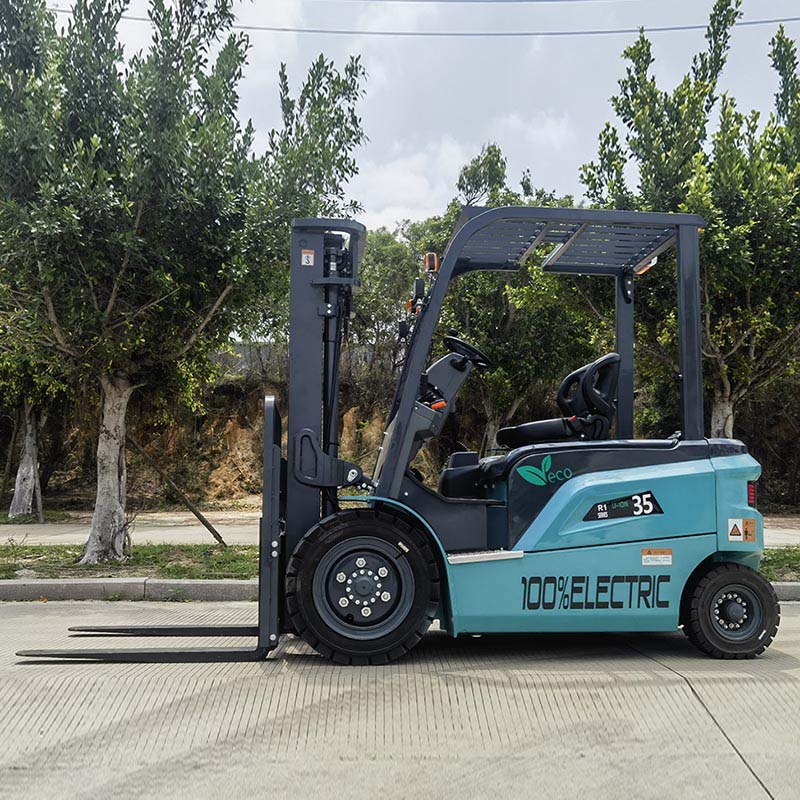

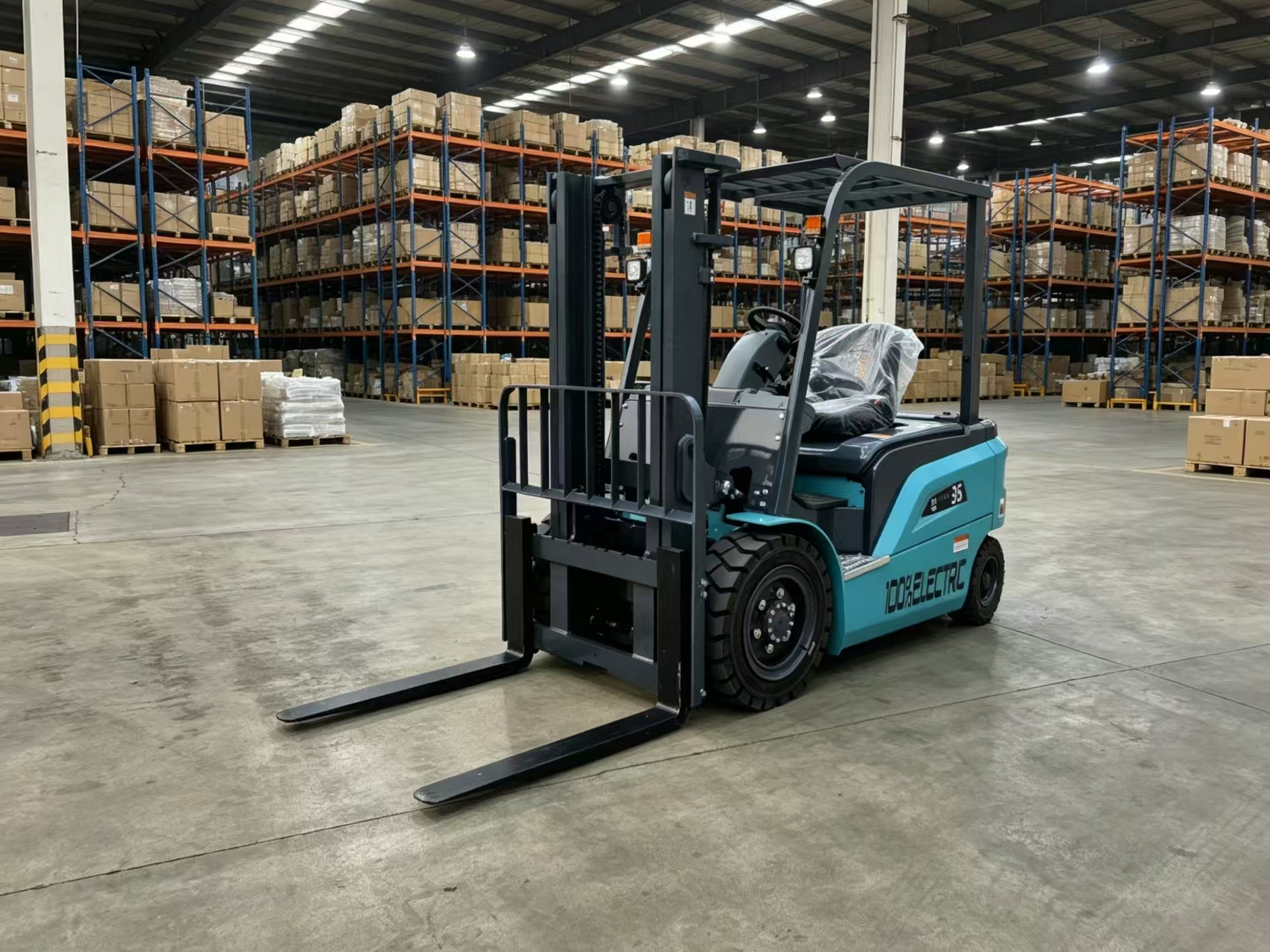

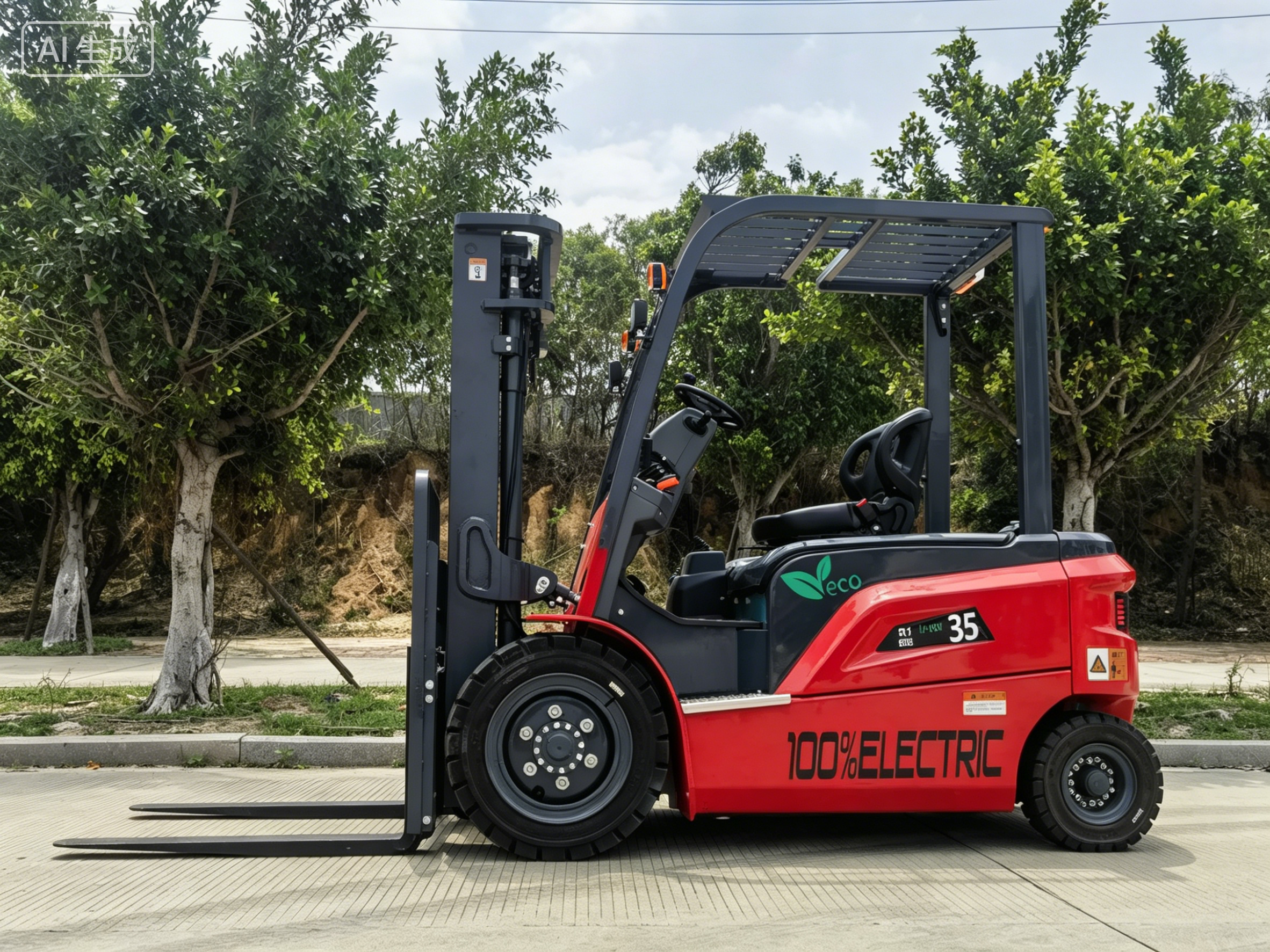

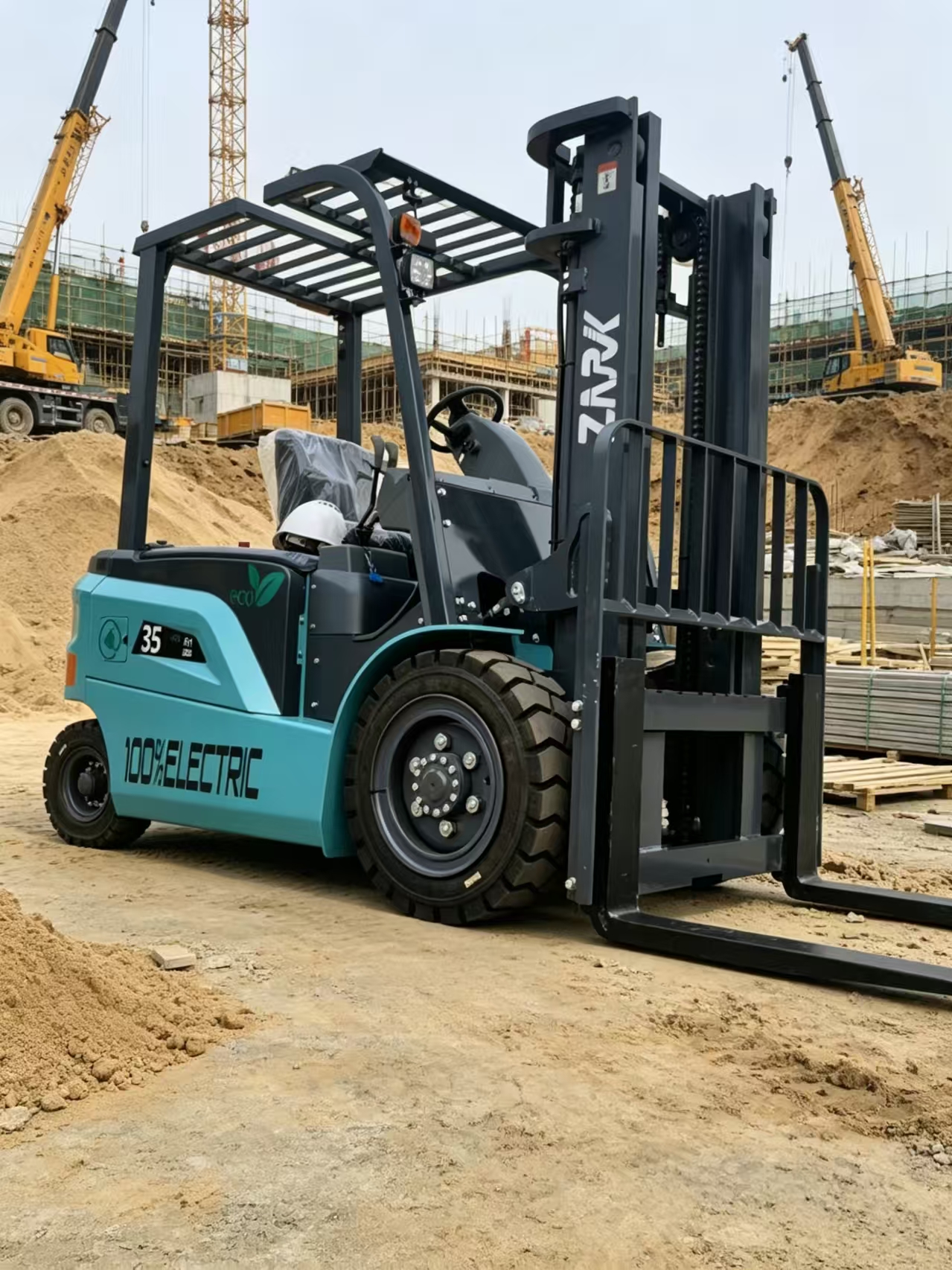

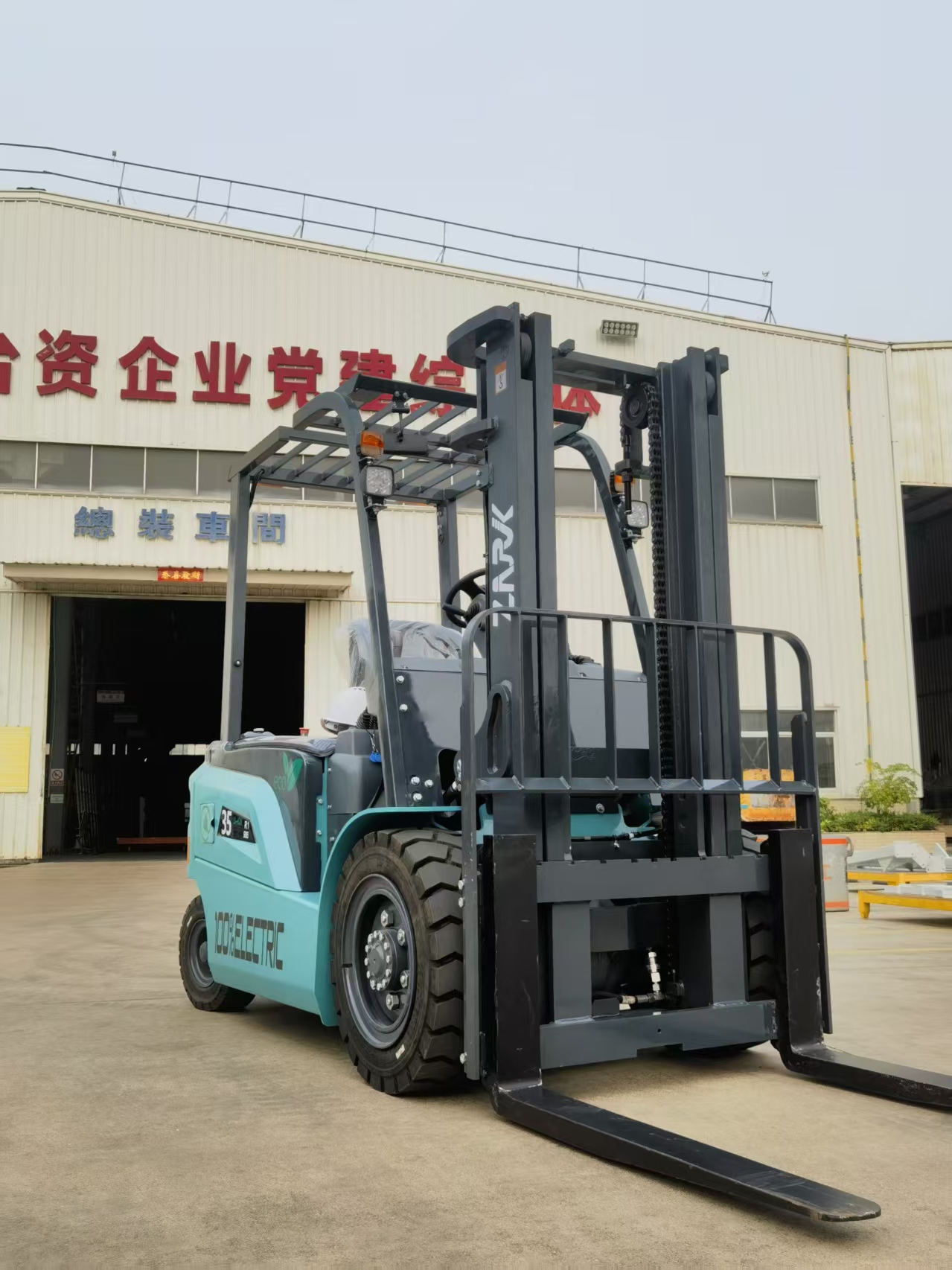

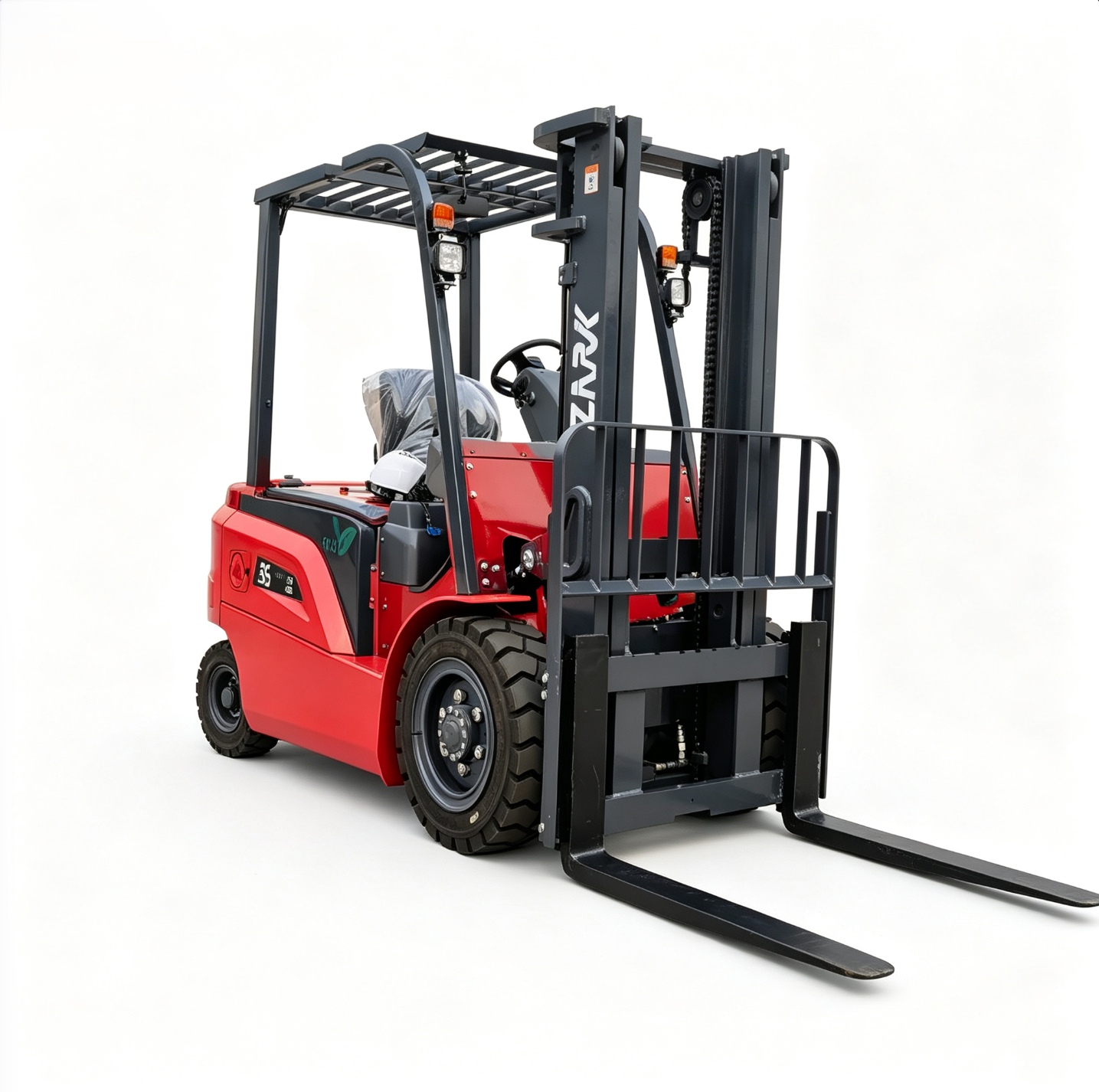

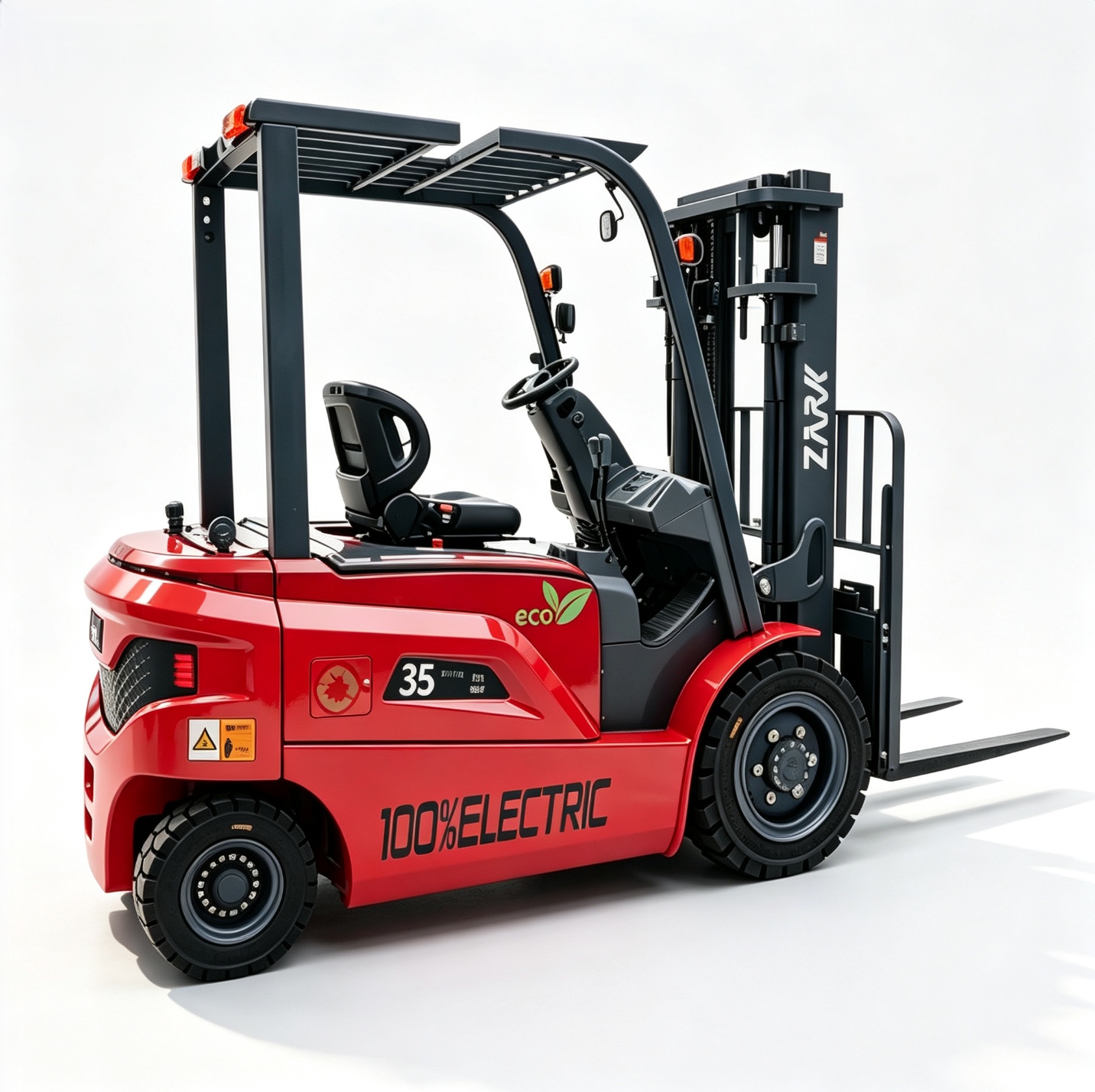

The RKF35 is engineered for easy, operator-friendly handling, high operating efficiency, and a robust, reliable structure. It performs confidently across complex operating conditions, enabling efficient and stable operation.
